Deutsch DT2-1-L012 DT Series Flange Mount Connector Kit

Name: Deutsch DT2-1-L012 DT Series Flange Mount Connector Kit
Brand: Deutsch
Price: 14.88 AUD
Availability: InStock

Be the first to review this product

Special Price $14.88 Regular Price $15.50

In stock

SKU

DT2-1-L012

Deutsch DT2-1-L012 DT Series Flange Mount Connector Kit is available to buy in increments of 1

Kit builders: the DT2-1-L012 is a complete kit with housings, contacts and wedges so one part number covers the whole connection. Specs: DT Series, 2 cavities, size 16 contacts, 13 A. Flange mount receptacle with wedgelock, plug with wedgelock, 2 pins and 2 sockets; IP68 and IP6K9K, -55C to 125C. Pair with the contacts and tools in this range.

Details

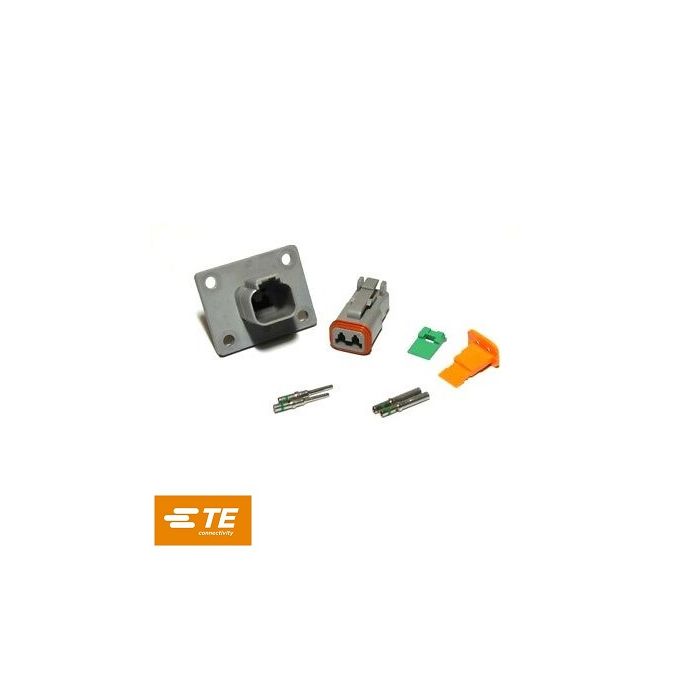

Deutsch DT Series DT2-1-L012 Flange Mount Connector Kit

Kit Contents:

1x Flang Mount Receptacle and Wedgelock
1x Plug and Wedgelock
Contacts: 2 Pins
Contacts: 2 Sockets

Housing	Thermoplastic
Seal	Silicon Rubber
Wedgelock	Thermoplastic
Contact Size	16
Contact Rating	13A @ 125°C
Shock	50G
Vibration	20G rms 10 - 2000Hz
Approvals	20mm Flame Test per Standard UL-94
Ingress Protection	IP68, IP6K9K
Operating Temperature	-55ºC to 125°C
